In early computing environments, storage was tightly coupled to individual machines, meaning each system had its own directly attached disk resources. This model worked well when computing was isolated, but it became increasingly inefficient as organizations began deploying multiple servers that needed access to shared datasets. The lack of shared access created duplication of data, wasted disk capacity, and made collaboration between systems difficult.
Networked block storage emerged as a response to these limitations. Instead of binding storage to a single system, it allows storage resources to be accessed over a network while still appearing to the operating system as locally attached disks. This abstraction is important because applications and operating systems do not need to be modified to understand network behavior. They continue to interact with storage using standard disk operations such as reading and writing blocks of data.
Block storage differs fundamentally from file-based storage systems. In file-based systems, such as shared file servers, data is organized and managed as files within a hierarchical structure. Access is typically mediated by a file system protocol that controls how files are created, modified, and shared. Block storage, on the other hand, exposes raw storage volumes without any predefined structure. The operating system on the client side is responsible for formatting and managing the file system on top of these raw blocks.
This distinction gives block storage several advantages in performance-sensitive environments. Because there is less abstraction between the storage device and the operating system, data can be accessed more efficiently. It also allows multiple systems to use shared storage resources while maintaining independent control over how data is organized internally. This is particularly important in environments such as databases and virtualization platforms, where consistent low-latency access to storage is required.
The rise of networked block storage also introduced the concept of centralized storage systems. Instead of distributing disks across multiple servers, organizations began consolidating storage into dedicated storage arrays. These systems could then be shared across many servers, improving utilization rates and simplifying management. Centralized storage also made it easier to implement redundancy, backups, and data protection strategies at scale.
Evolution of Storage Connectivity and the Emergence of Standard Protocols
Before standardized storage protocols existed, the computing industry relied on a variety of proprietary interfaces to connect storage devices to systems. Each manufacturer often developed its own method for communication between the operating system and the storage hardware. This resulted in compatibility issues and limited interoperability between different vendors.
Early storage interfaces included systems such as ST-506, ESDI, and SMD. These technologies were designed for specific hardware environments and lacked a unified communication standard. As a result, organizations were often locked into a single vendor’s ecosystem, which increased costs and reduced flexibility when upgrading or expanding storage systems.
The introduction of SCSI marked a significant shift toward standardization. SCSI provided a common command set that defined how computers communicate with storage devices. Instead of relying on vendor-specific implementations, systems could now use a standardized interface to send commands such as read, write, and inquiry operations to storage devices.
SCSI also introduced the concept of multiple devices sharing a single communication channel. This allowed several storage devices to be connected to a single controller, improving efficiency and scalability. Each device on the bus was assigned a unique identifier, enabling the controller to communicate with multiple devices independently.
Although early SCSI implementations used parallel communication over ribbon cables, the underlying protocol was more important than the physical layer. The command structure established by SCSI became the foundation for future storage technologies. Even as physical interfaces evolved, the logical communication model remained relevant.
Over time, the limitations of parallel SCSI, such as cable length restrictions and signal degradation, led to the development of serial-based implementations. These improvements maintained compatibility with the original command set while enhancing performance and scalability. This evolution laid the groundwork for modern storage networking systems that extend SCSI communication across network infrastructures.
SCSI Command Architecture and Its Importance in Storage Systems
The SCSI protocol defines a structured method for communication between initiators and targets. An initiator is typically a server or host system that issues commands, while a target is a storage device that responds to those commands. This relationship forms the basis of all SCSI-based storage interactions.
At the core of SCSI is a command set that specifies operations such as reading data from a disk, writing data to a disk, checking device status, and performing diagnostics. These commands are encapsulated into standardized packets that can be interpreted by any compliant storage device. This abstraction allows different hardware implementations to behave consistently from the perspective of the operating system.
One of the key advantages of SCSI is its independence from physical transport mechanisms. While originally designed for direct hardware connections, the protocol itself does not depend on any specific electrical or physical interface. This flexibility allows it to be transported over different mediums, including serial links and network-based systems.
SCSI also introduced the concept of logical unit numbers, which represent individual storage volumes within a larger storage system. This allows a single physical storage array to present multiple independent storage devices to different servers. Each logical unit behaves as an independent disk, even though it may share underlying physical resources with other logical units.
The durability of the SCSI model is one of the reasons it remains relevant today. Even in modern distributed storage environments, SCSI commands continue to be used as the foundational communication method. The difference lies not in the commands themselves, but in how they are transported across networks.
Transition from Direct-Attached Storage to Storage Networking
As computing environments became more complex, the limitations of direct-attached storage became more apparent. In a direct-attached model, each server manages its own storage devices independently. While this approach is simple, it leads to inefficiencies when multiple servers require access to the same data.
Storage networking addresses this limitation by decoupling storage from individual servers. Instead of being physically attached to a single machine, storage resources are placed on a network and accessed remotely. This allows multiple servers to share the same storage infrastructure while maintaining independent control over their data access.
One of the primary motivations for this transition was resource efficiency. In direct-attached systems, unused disk capacity on one server cannot be easily shared with another. This leads to fragmentation of storage resources across the infrastructure. By centralizing storage, organizations can pool resources and allocate them dynamically based on demand.
Another important factor is data consistency. In environments where multiple servers need access to the same dataset, such as clustered applications, direct-attached storage becomes impractical. Storage networking allows all participating systems to access the same underlying data simultaneously, ensuring consistency across nodes.
The shift toward storage networking also enabled more advanced data management capabilities. Centralized storage systems can implement features such as snapshots, replication, and redundancy at the storage layer rather than relying on individual servers. This improves reliability and simplifies administrative overhead.
Foundations of Storage Area Networks and Block-Level Access
Storage Area Networks represent a specialized network architecture designed specifically for block-level storage access. Unlike general-purpose networks that handle a wide range of traffic types, Storage Area Networks are optimized exclusively for storage communication. This specialization allows them to deliver high performance and predictable behavior.
In a Storage Area Network, storage devices are connected to servers through a dedicated network infrastructure. This infrastructure is typically isolated from regular data traffic to ensure consistent performance. The network is designed to handle large volumes of small, latency-sensitive transactions that are characteristic of storage workloads.
Block-level access is a defining feature of Storage Area Networks. Instead of transferring complete files, data is accessed in fixed-size blocks. This approach reduces overhead and allows for more efficient use of network resources. It also enables storage systems to present raw disk volumes directly to servers, which can then manage their own file systems.
The architecture of a Storage Area Network typically includes multiple layers of redundancy. Multiple paths are often established between servers and storage devices to ensure that failures do not result in loss of connectivity. If one path becomes unavailable, traffic can be rerouted through an alternative path without disrupting operations.
This level of redundancy is essential in enterprise environments where continuous availability is required. It also allows for maintenance and upgrades to be performed without taking the entire storage system offline. By isolating storage traffic from general network traffic, Storage Area Networks provide a controlled environment optimized for performance and reliability.
Foundational Role of SCSI in Modern Storage Transport Systems
Although storage networking technologies have evolved significantly, many of them continue to rely on the SCSI command structure as their underlying communication model. This is because SCSI provides a well-defined and widely supported method for interacting with storage devices.
When storage systems began to move from direct connections to network-based architectures, it became necessary to transport SCSI commands across network layers. Instead of redesigning storage communication from scratch, engineers chose to encapsulate existing SCSI commands within new transport protocols. This allowed legacy systems and applications to continue functioning without modification.
This approach created a separation between the command layer and the transport layer. The command layer defines what operations are performed on storage devices, while the transport layer determines how those commands are delivered. This modular design makes storage systems more flexible and easier to evolve over time.
As a result, many modern storage networking technologies can be understood as different methods of transporting SCSI commands. Whether the underlying network is fiber-based, Ethernet-based, or IP-based, the core communication model remains consistent. This continuity has been essential in maintaining compatibility across generations of storage systems.
The persistence of SCSI also highlights its importance as a foundational technology in computing. While hardware and networking methods continue to evolve, the logical structure of storage communication remains largely unchanged. This stability allows new technologies to build on existing systems rather than replacing them entirely.
Introduction to Network-Based Storage Transport Mechanisms
As storage systems transitioned to network-based architectures, several transport mechanisms were developed to carry storage commands across different types of networks. These mechanisms vary in terms of performance, complexity, and infrastructure requirements.
Some approaches focus on dedicated high-performance networks designed specifically for storage traffic. Others leverage existing network infrastructure to reduce cost and simplify deployment. Each method represents a different balance between performance, scalability, and operational efficiency.
Network-based storage transport systems must address several key challenges. They must ensure reliable delivery of storage commands, maintain data integrity, and provide consistent performance under varying network conditions. They must also integrate with existing computing environments without requiring major changes to applications or operating systems.
The design of these systems often reflects trade-offs between specialization and flexibility. Highly specialized systems offer better performance but require dedicated infrastructure. More flexible systems are easier to deploy but may introduce performance overhead due to shared network usage.
These trade-offs form the basis for comparing different storage networking technologies. Understanding the underlying principles of network-based storage transport is essential for evaluating how different protocols behave in real-world environments and why they are chosen for specific use cases.
Fibre Channel Architecture and Its Role in Dedicated Storage Networks
Fibre Channel is designed as a purpose-built storage networking technology that prioritizes predictable performance, low latency, and lossless communication. Unlike general-purpose networking systems, it is engineered specifically for carrying storage traffic in environments where consistency is more important than flexibility.
At its core, Fibre Channel separates the responsibilities of data transport and storage command execution. The storage commands themselves remain based on the SCSI model, but they are encapsulated and transmitted through a specialized transport system. This separation allows storage systems to maintain compatibility with existing operating systems while benefiting from a high-performance network infrastructure.
Fibre Channel networks are typically deployed as Storage Area Networks, where servers and storage arrays are connected through dedicated switches. These switches form what is known as a fabric, which provides multiple communication paths between devices. The fabric design ensures that traffic can be rerouted dynamically in case of failures, improving resilience and availability.
One of the defining characteristics of Fibre Channel is its emphasis on lossless communication. In storage environments, data integrity and order are critical. Fibre Channel achieves this by ensuring that frames are delivered reliably and in sequence without requiring retransmission at higher layers. This reduces overhead and improves overall efficiency, particularly in high-throughput environments.
Fibre Channel also relies on dedicated hardware components. Servers use host bus adapters to connect to the network, while storage arrays include specialized interface modules. This hardware specialization contributes to performance consistency but also increases deployment complexity.
Fibre Channel Switching and Fabric Topologies
The structure of a Fibre Channel network is based on interconnected switches that form a fabric. This fabric is responsible for routing storage traffic between initiators and targets. Unlike traditional Ethernet networks, Fibre Channel fabrics are designed with a strong focus on deterministic behavior and controlled communication paths.
Each switch within the fabric maintains information about connected devices and available routes. When a server sends a storage request, the fabric determines the most efficient path to the target storage device. This process is optimized for low latency and minimal congestion.
Fibre Channel supports multiple topologies, including point-to-point, arbitrated loop, and switched fabric. In modern deployments, switched fabric is the most common due to its scalability and performance advantages. It allows multiple simultaneous communication paths, reducing contention and improving throughput.
Redundancy is a key design principle in Fibre Channel networks. Multiple fabrics are often deployed in parallel, creating physically separate communication paths. Servers and storage devices are connected to more than one fabric, ensuring that if one path fails, another can take over without interrupting storage access.
This dual-fabric design enhances availability and is particularly important in mission-critical environments. It also enables load balancing across multiple paths, allowing storage traffic to be distributed efficiently.
Performance Characteristics of Fibre Channel Systems
Fibre Channel is widely recognized for its predictable performance behavior. Because it operates in a controlled environment with dedicated infrastructure, it avoids many of the variables that affect general-purpose networks. This includes congestion from unrelated traffic and variability in packet delivery.
Latency in Fibre Channel systems is typically very low due to the absence of higher-level transport overhead such as TCP processing. Frames are transmitted directly across the fabric with minimal processing, resulting in faster response times for storage operations.
Bandwidth scalability is another important feature. Fibre Channel standards have evolved through multiple generations, increasing throughput capabilities while maintaining backward compatibility. This allows organizations to upgrade performance without completely redesigning their infrastructure.
The deterministic nature of Fibre Channel also makes it suitable for workloads that require consistent timing behavior. Applications such as large-scale databases and virtualization platforms benefit from stable storage performance, particularly under heavy load conditions.
Despite its advantages, Fibre Channel requires careful planning and configuration. The design of the fabric, zoning policies, and path redundancy must all be managed to ensure optimal performance and reliability.
iSCSI Architecture and IP-Based Storage Transport
Internet Small Computer Systems Interface is a storage networking protocol that leverages existing IP infrastructure to transmit storage commands. Instead of relying on dedicated hardware, it encapsulates SCSI commands within TCP/IP packets and sends them over standard Ethernet networks.
This approach allows storage systems to integrate directly with existing network environments. Servers typically use standard network interfaces to access storage resources, and storage arrays expose block devices through IP addresses. This eliminates the need for specialized storage networking hardware in many cases.
The use of TCP/IP introduces a different operational model compared to Fibre Channel. TCP provides reliable communication through mechanisms such as retransmission, flow control, and congestion management. While these features ensure data integrity, they also introduce additional processing overhead.
iSCSI traffic shares the same network infrastructure as other types of data traffic. This means that storage performance can be influenced by overall network conditions. Proper network design, including segmentation and quality of service configurations, is often necessary to ensure stable performance.
Despite these challenges, iSCSI offers significant advantages in terms of flexibility and cost efficiency. It can be deployed over existing networks without major infrastructure changes, making it accessible to a wide range of environments.
iSCSI Communication Process and Data Encapsulation
The communication process in iSCSI involves several layers of encapsulation. At the highest level, storage commands are generated by the operating system using the SCSI protocol. These commands are then encapsulated into iSCSI messages, which are further encapsulated into TCP segments and finally into IP packets.
When a server issues a storage request, the iSCSI initiator converts the SCSI command into a network packet. This packet is transmitted over the IP network to a storage target, which processes the request and returns the appropriate response.
This layered structure provides flexibility but also introduces overhead. Each layer adds processing requirements, including packet assembly, error checking, and retransmission handling. These factors can affect performance, particularly in high-throughput or latency-sensitive environments.
However, iSCSI benefits from the maturity and scalability of IP networks. It can traverse routers, switches, and wide-area networks, allowing storage to be accessed across geographically distributed locations. This capability is not typically available in dedicated storage protocols without additional configuration.
FCoE Architecture and Converged Network Design
Fibre Channel over Ethernet represents a hybrid approach that combines aspects of Fibre Channel and Ethernet networking. It encapsulates Fibre Channel frames directly into Ethernet frames, allowing storage traffic to be transmitted over Ethernet infrastructure while preserving Fibre Channel semantics.
Unlike iSCSI, FCoE does not use TCP/IP. Instead, it operates directly over Ethernet at a lower layer. This reduces protocol overhead and improves efficiency compared to IP-based storage transport. However, it also means that FCoE requires specialized network configurations to function correctly.
One of the key requirements for FCoE is a lossless Ethernet environment. Standard Ethernet is not inherently lossless, so enhancements such as priority-based flow control are used to prevent packet loss in storage traffic. This ensures that storage frames are delivered reliably without retransmission.
FCoE also requires converged network adapters in many implementations. These adapters handle both traditional Ethernet traffic and encapsulated Fibre Channel traffic, allowing a single physical interface to support multiple types of communication.
The convergence of storage and network traffic simplifies cabling and reduces hardware requirements. However, it also introduces complexity in network configuration and management, as storage and general data traffic must coexist on the same infrastructure.
FCoE Deployment Considerations in Data Center Environments
Deploying FCoE requires careful planning to ensure that storage traffic is not affected by other network activities. Because storage and general data traffic share the same physical infrastructure, proper traffic prioritization is essential.
Data center Ethernet switches used for FCoE must support enhanced features that enable lossless communication. These features ensure that storage frames are not dropped during congestion, which is critical for maintaining data integrity.
In addition, network segmentation is often used to isolate storage traffic from other types of traffic. This helps reduce contention and improves predictability. Virtual LANs and quality of service policies are commonly used to achieve this separation.
FCoE environments also require compatibility between storage arrays, network switches, and server adapters. Not all hardware supports FCoE natively, which can limit deployment options.
Despite these challenges, FCoE offers a compelling balance between performance and infrastructure consolidation. It allows organizations to reduce the number of separate networks while maintaining many of the performance characteristics associated with Fibre Channel.
Comparative Behavior of Storage Protocols in Network Environments
Each storage protocol behaves differently under network load and infrastructure constraints. Fibre Channel maintains consistent performance due to its dedicated architecture. It is less affected by external traffic and provides predictable latency and throughput.
iSCSI performance is more variable because it depends on the underlying IP network. Congestion, routing, and competing traffic can all impact storage performance. However, with proper network design, iSCSI can perform efficiently in many environments.
FCoE attempts to bridge the gap by providing Fibre Channel-like performance over Ethernet infrastructure. Its effectiveness depends heavily on proper configuration and hardware support.
These differences highlight the importance of aligning storage protocol selection with workload requirements. High-performance environments often prioritize consistency, while cost-sensitive environments prioritize flexibility and integration.
Infrastructure Design Implications for Storage Protocol Selection
Choosing a storage protocol affects the entire infrastructure design of a computing environment. Fibre Channel requires dedicated storage networks, specialized hardware, and separate management systems. This results in high performance but increased complexity.
iSCSI integrates with existing network infrastructure, reducing deployment complexity and cost. However, it requires careful network engineering to ensure performance stability under load.
FCoE introduces a converged model where storage and data networks share infrastructure. This simplifies physical design but increases logical complexity in traffic management.
Each model represents a different architectural philosophy. Dedicated storage networks prioritize isolation and performance, while converged networks prioritize efficiency and consolidation.
Understanding these trade-offs is essential when designing storage architectures that must meet both current operational needs and future scalability requirements without introducing unnecessary limitations.
Storage Performance, Latency, and Throughput in Modern Protocols
When evaluating storage networking technologies, performance is not a single measurement but a combination of latency, throughput, and consistency under load. Each protocol behaves differently depending on how it handles data transmission, error recovery, and network congestion.
Fibre Channel is designed to deliver highly predictable performance. Because it operates on a dedicated transport system, it avoids interference from unrelated network traffic. This isolation allows storage operations to maintain consistent latency even under heavy workloads. Frames are transmitted in a controlled environment where congestion is minimized, and delivery is lossless, reducing the need for retransmission.
iSCSI, by contrast, operates over standard IP networks, which introduces variability. TCP ensures reliability by retransmitting lost packets and managing congestion, but this process adds overhead. When network utilization increases, latency can fluctuate depending on how the underlying Ethernet infrastructure handles competing traffic. While modern networks can be optimized for iSCSI, performance consistency depends heavily on configuration and overall network health.
FCoE sits between these two models. It avoids TCP overhead by encapsulating Fibre Channel frames directly into Ethernet, but it still relies on Ethernet infrastructure. When properly configured with lossless Ethernet features, it can achieve performance closer to Fibre Channel. However, if the underlying network is not carefully engineered, performance degradation can occur.
Throughput is influenced not only by raw bandwidth but also by protocol efficiency. Fibre Channel benefits from a streamlined design with minimal protocol overhead, allowing more of the available bandwidth to be used for actual data transfer. iSCSI, while capable of high throughput, uses additional processing layers that reduce efficiency under certain workloads. FCoE improves efficiency by reducing protocol layers but still depends on Ethernet performance characteristics.
Latency Behavior and Its Impact on Storage-Dependent Applications
Latency is one of the most critical factors in storage performance, especially for applications that require frequent disk access. Even small variations in latency can significantly affect database performance, virtual machine responsiveness, and transactional systems.
Fibre Channel minimizes latency through its architecture. It uses dedicated switching fabrics and avoids complex transport protocols like TCP. Because of this, storage requests can travel through the network with minimal processing delay. The deterministic nature of Fibre Channel means latency remains relatively stable regardless of network load.
iSCSI introduces additional latency due to its reliance on TCP/IP. Each storage request must pass through multiple processing layers, including segmentation, routing, error checking, and reassembly. When network congestion occurs, TCP may introduce further delays through retransmission and congestion control mechanisms. These factors make iSCSI more sensitive to network conditions.
FCoE reduces some latency compared to iSCSI by eliminating TCP processing. However, it still depends on Ethernet switching behavior. If the Ethernet network is not configured for lossless transmission, frame loss and retransmission can introduce delays similar to those seen in IP-based systems.
Applications that require strict latency guarantees often benefit from Fibre Channel due to its consistent behavior. In contrast, environments that prioritize flexibility and cost efficiency may accept variable latency in exchange for easier deployment.
Scalability Models in Storage Networking Architectures
Scalability in storage networking refers to the ability to expand storage capacity and performance without significant redesign of the infrastructure. Each protocol approaches scalability differently based on its underlying architecture.
Fibre Channel scales within a controlled ecosystem. Expanding a Fibre Channel network typically involves adding new switches, host bus adapters, and storage arrays. While this model supports large-scale environments, it requires careful planning to maintain fabric integrity and performance balance. Zoning and fabric design become increasingly important as the network grows.
iSCSI offers a more flexible scalability model because it operates over IP networks. Additional storage devices can be integrated into existing network infrastructure with minimal disruption. This allows organizations to scale storage incrementally without major architectural changes. However, as the number of devices increases, network congestion and traffic management become more complex.
FCoE provides a hybrid scalability approach. It allows storage and network traffic to converge, reducing the number of physical networks required. However, scalability depends on the capability of the underlying Ethernet infrastructure. As traffic increases, ensuring lossless behavior and maintaining performance consistency becomes more challenging.
Each model reflects a different approach to growth. Fibre Channel emphasizes structured expansion, iSCSI emphasizes flexibility, and FCoE attempts to balance both through convergence.
Infrastructure Complexity and Operational Overhead
The complexity of managing storage networks varies significantly across protocols. Fibre Channel environments require specialized knowledge of fabric design, zoning, and hardware configuration. Administrators must manage dedicated storage switches, host adapters, and storage arrays. This creates a highly controlled but complex operational environment.
iSCSI reduces operational complexity by leveraging existing IP networking knowledge. Since it runs over standard Ethernet, network administrators can apply familiar tools and techniques for configuration and troubleshooting. However, performance optimization may require careful tuning of network settings, including segmentation and traffic prioritization.
FCoE introduces a different type of complexity. While it reduces the number of physical networks, it increases logical complexity by combining storage and data traffic. Administrators must ensure that Ethernet networks are properly configured to support storage requirements while still handling general network traffic.
Operational overhead also includes monitoring, troubleshooting, and maintenance. Fibre Channel environments often require specialized monitoring tools, while iSCSI environments can be managed using standard network monitoring systems. FCoE environments require hybrid monitoring approaches that can track both Ethernet and storage-specific behavior.
Reliability, Redundancy, and Fault Tolerance Mechanisms
Reliability is a fundamental requirement in storage systems, as data loss or unavailability can have severe consequences. Each storage protocol implements different mechanisms to ensure fault tolerance and high availability.
Fibre Channel achieves reliability through redundancy at multiple levels. Dual-fabric designs are commonly used, where each server and storage device is connected to two separate networks. If one fabric fails, the other can continue handling traffic without interruption. Fibre Channel also ensures in-order delivery and lossless transmission, reducing the risk of data corruption or retransmission overhead.
iSCSI relies on TCP for reliability. TCP ensures that lost packets are retransmitted and that data is delivered in the correct order. However, this reliability comes at the cost of additional processing overhead and potential latency increases. Redundancy in iSCSI environments is typically achieved through network design rather than protocol-level guarantees.
FCoE depends on lossless Ethernet mechanisms to maintain reliability. Features such as priority flow control help prevent frame loss, but proper configuration is essential. Redundancy is typically achieved through multiple network paths and dual adapters, similar to Fibre Channel designs.
In all cases, redundancy plays a key role in maintaining system availability. The difference lies in how each protocol implements and manages fault tolerance.
Security Considerations in Storage Networking Environments
Security in storage networks involves protecting data in transit, controlling access to storage resources, and preventing unauthorized communication between systems.
Fibre Channel provides security primarily through isolation. Because it operates on a dedicated network, it is physically separated from general data traffic. Access control is implemented through zoning, which restricts which devices can communicate within the fabric. This reduces the attack surface but requires careful configuration.
iSCSI operates over IP networks, which exposes it to the same security considerations as other network traffic. Authentication mechanisms such as CHAP can be used to verify device identity. Additionally, encryption can be applied at the network level to protect data in transit. However, because iSCSI shares infrastructure with other traffic, it requires more comprehensive network security measures.
FCoE inherits security considerations from both Fibre Channel and Ethernet. While it benefits from Fibre Channel zoning concepts, it also operates within Ethernet environments, which may require additional segmentation and access control mechanisms.
Security design in storage networks often involves balancing accessibility with protection. Highly isolated systems offer stronger security but less flexibility, while shared systems require more advanced security controls.
Cost Structure and Economic Impact of Storage Protocols
Cost plays a significant role in determining which storage protocol is used in a given environment. Fibre Channel is generally the most expensive option due to its reliance on specialized hardware, dedicated networks, and skilled administration. The cost includes host bus adapters, Fibre Channel switches, and storage arrays designed specifically for the protocol.
iSCSI is typically the most cost-effective option. It uses standard Ethernet hardware and existing network infrastructure, reducing both capital and operational expenses. This makes it attractive for organizations with limited budgets or those deploying non-critical workloads.
FCoE falls between the two in terms of cost. While it reduces the need for separate storage networks, it may require upgraded Ethernet infrastructure and converged network adapters. The cost savings come from infrastructure consolidation rather than elimination of hardware requirements.
Cost considerations often extend beyond initial deployment. Operational expenses, maintenance, training, and scalability all contribute to the total cost of ownership. Fibre Channel may have higher upfront costs but lower performance variability, while iSCSI may have lower initial costs but higher variability in performance management.
Workload Suitability and Use Case Alignment
Different storage protocols are better suited to different types of workloads based on their performance characteristics and operational models.
Fibre Channel is commonly used in environments where performance consistency is critical. This includes large-scale databases, enterprise virtualization platforms, and mission-critical applications. Its predictable behavior makes it suitable for systems that cannot tolerate variability in storage performance.
iSCSI is often used in environments where flexibility and cost efficiency are more important than absolute performance consistency. It is commonly found in development environments, small to medium-sized deployments, and distributed systems where storage needs may change frequently.
FCoE is typically used in data center environments that aim to consolidate infrastructure while maintaining high performance. It is suitable for organizations that want to reduce network complexity without sacrificing too much performance.
Workload requirements such as input/output intensity, latency sensitivity, and scalability needs all influence protocol selection. There is no single optimal choice for all environments, and each protocol represents a different balance of trade-offs.
Long-Term Evolution of Storage Networking Technologies
Storage networking continues to evolve as computing environments become more distributed and performance requirements increase. Traditional distinctions between storage and network traffic are becoming less rigid as convergence technologies advance.
Fibre Channel continues to evolve through higher-speed implementations while maintaining its core design principles. Its focus remains on predictable performance and dedicated infrastructure.
iSCSI continues to benefit from improvements in Ethernet technology, including higher bandwidth and lower latency networks. As IP networks become faster and more efficient, the performance gap between iSCSI and dedicated storage networks can narrow in certain scenarios.
FCoE represents an early step toward converged infrastructure, but newer models of network convergence and software-defined storage are expanding beyond its original design.
The overall trend in storage networking is toward greater abstraction, flexibility, and integration with general-purpose computing infrastructure. However, the need for reliable, high-performance storage communication ensures that specialized protocols will continue to play an important role in modern systems.
Conclusion

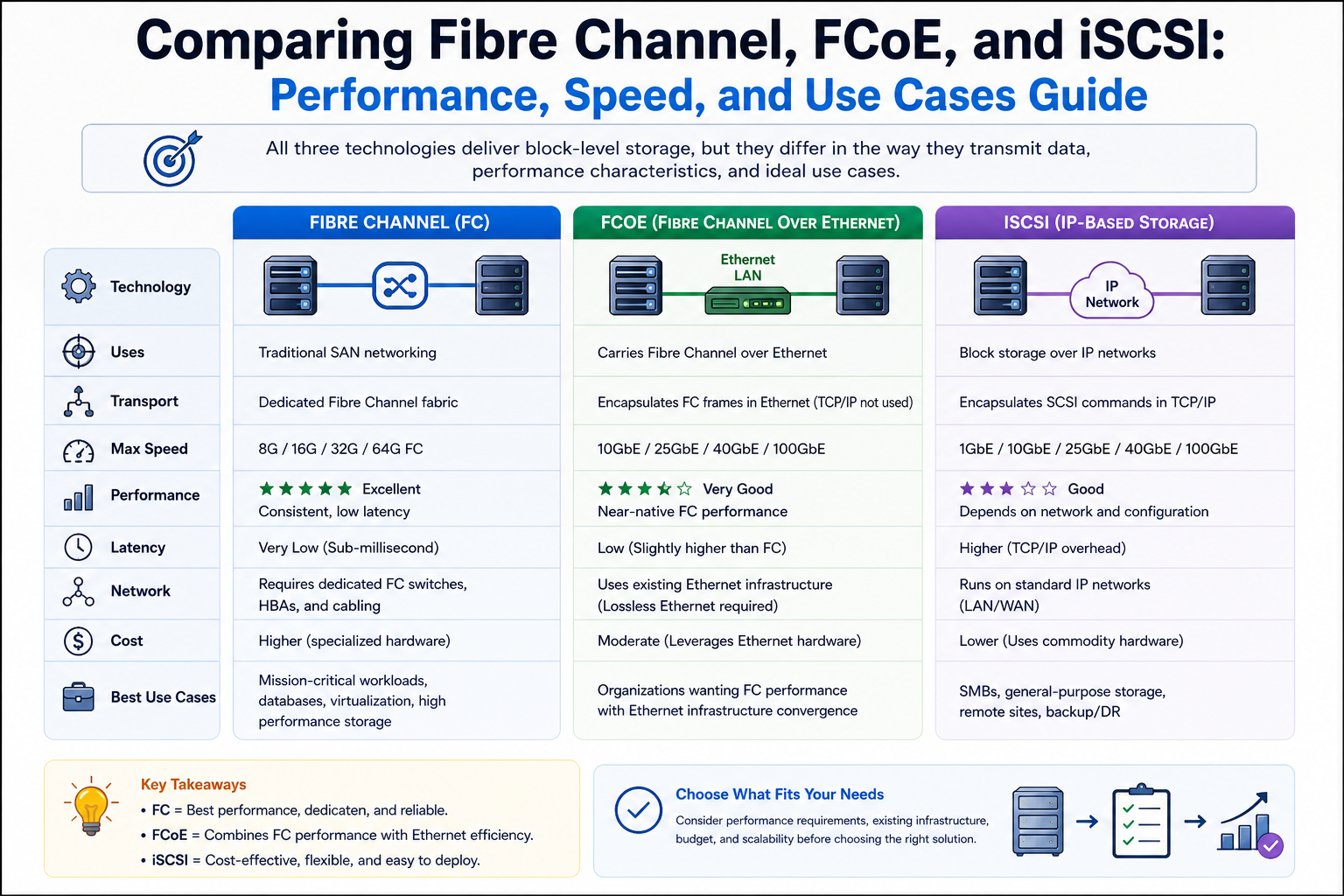

The comparison between Fibre Channel, iSCSI, and Fibre Channel over Ethernet highlights that storage networking is not defined by a single “best” solution, but rather by how well a protocol aligns with specific operational needs, infrastructure constraints, and performance expectations. Each technology represents a different philosophy in how storage should be delivered across modern computing environments.
Fibre Channel remains the most performance-focused option. Its dedicated architecture, lossless transport, and isolated fabric design make it highly reliable and predictable. These characteristics are especially valuable in environments where storage latency must remain consistent under heavy load, such as large databases or mission-critical enterprise systems. However, this performance comes at the cost of higher infrastructure investment and operational complexity. Specialized hardware, separate networking layers, and skilled administration are all required to maintain a Fibre Channel environment effectively.
iSCSI takes a more flexible and cost-efficient approach by leveraging existing IP networks. Its ability to operate over standard Ethernet infrastructure makes it highly accessible and easy to deploy. This lowers entry barriers and allows organizations to scale storage without significant hardware investment. However, its dependence on TCP/IP introduces variability in performance, especially under network congestion or suboptimal configurations. While it may not always match Fibre Channel in consistency, it provides a practical balance between cost, simplicity, and functionality.
Fibre Channel over Ethernet sits between these two approaches by attempting to combine the performance characteristics of Fibre Channel with the infrastructure efficiency of Ethernet. By encapsulating Fibre Channel frames directly into Ethernet, it reduces protocol overhead while still requiring enhancements to ensure lossless behavior. This makes it attractive in environments that aim to consolidate storage and network infrastructure. However, its effectiveness depends heavily on proper network design and hardware compatibility, which can limit its flexibility.
Across all three technologies, the underlying SCSI command structure remains a constant foundation. Whether transmitted over dedicated Fibre Channel fabrics, encapsulated within TCP/IP, or carried through Ethernet frames, SCSI continues to define how storage devices interpret and execute commands. This consistency has allowed storage networking to evolve without breaking compatibility with existing systems and applications.
Ultimately, selecting a storage networking protocol involves balancing several factors: performance consistency, cost efficiency, scalability, and operational complexity. Fibre Channel excels in performance-critical, high-availability environments. iSCSI is well suited for flexible, budget-conscious deployments and environments already built on IP networking. FCoE offers a middle ground for organizations seeking convergence without fully abandoning performance-oriented design principles.
As computing environments continue to evolve, the distinction between these technologies may become less rigid. Advances in Ethernet speed, network virtualization, and storage abstraction are already reshaping how storage is delivered and consumed. However, the fundamental trade-offs between dedicated performance, shared infrastructure, and convergence will continue to influence architectural decisions.
Understanding these trade-offs is essential for designing storage systems that not only meet current demands but also remain adaptable to future technological changes.
